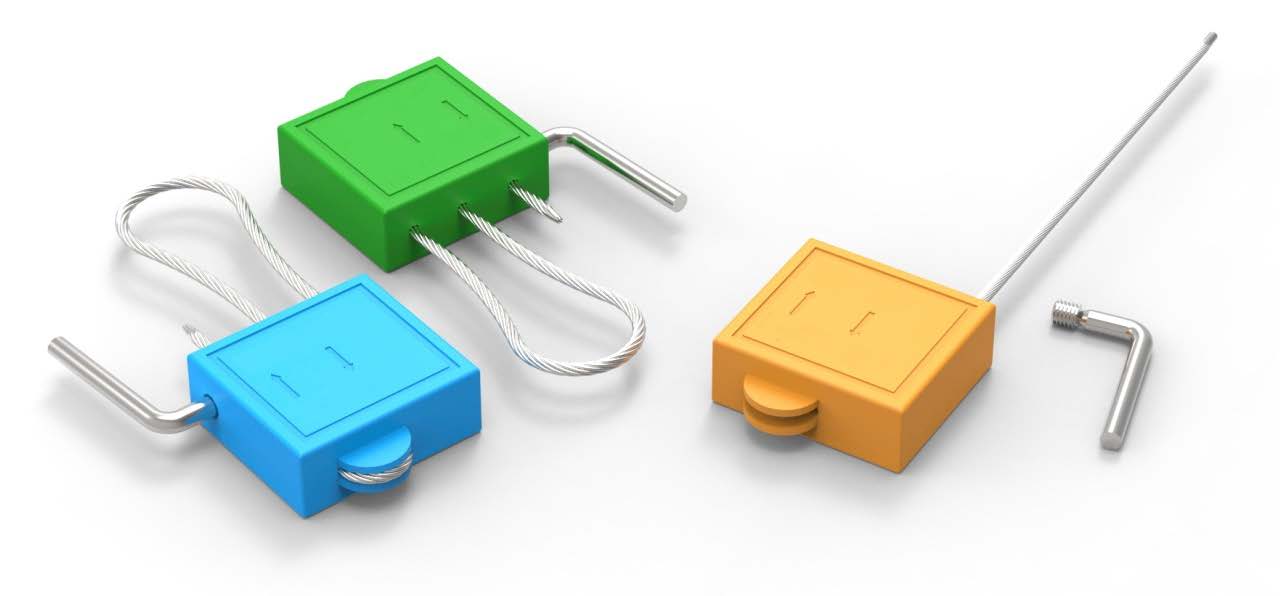

Cable Seals-04 TSS-PCF2.0-3lock
원산지


Applications

A variety of standard containers, vans, doors, rail-train containers etc.



사용 분야 :

다양한 표준 컨테이너, , , 철도 기차 컨테이너 등



Specification

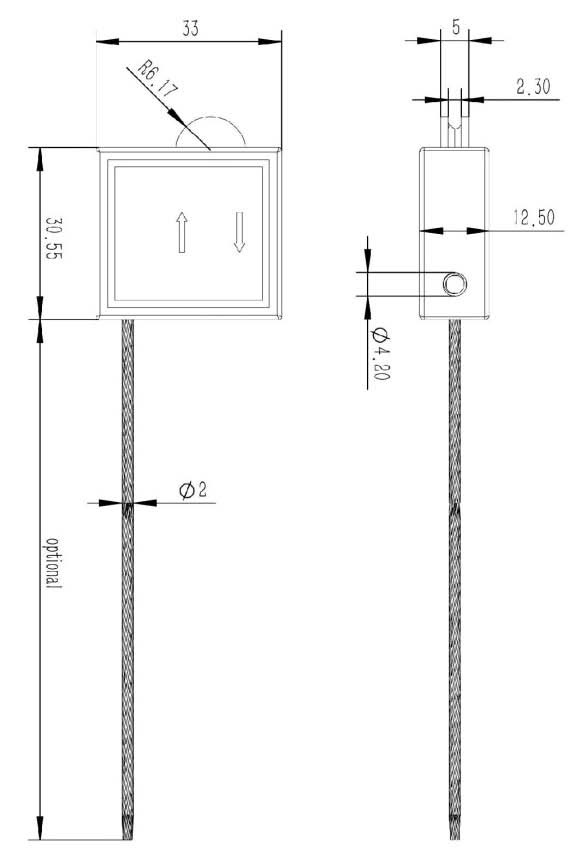

1. 2.0mm diameter of the cable, the length can be customized.

2. Lock-head size 33mm x 30.55mm x 12.5mm.

3. Cable: braided aeronautics steel-wire rope.

4. Device Material: zinc alloy die-castings.

5.Material: ABS, lock mechanism: zinc

6. Anti-corrosion, anti-UV 7. Crank-locking fixed type.

8. Tensile strength: 350kgf.

9. Use a cable cutter to remove.



사양:

1. 케이블의 직경 2.0mm, 길이는 주문을 받아서 만들어 질 수 있다.

2. 자물쇠 머리 크기 : 33mm x 30.55mm x 12.5mm.

3. 케이블 : 항공학 강철 와이어 로프.

4. 장치 재질 : 아연 합금

5. 재질 : ABS, 자물쇠 메커니즘 : 아연

6 부식 방지, 자외선 방지

7. 크랭크 고정 고정 유형.

8. 인장 강도 : 350kgf.

9. 케이블 커터를 사용하여 제거하십시오.



Printing

The company's logo and name, serial number and

laser barcode



인쇄:

회사의 로고와 이름, 일련 번호 및

레이저 바코드



Colors

Yellow, white, green, blue, orange, red (optional)



색상 :

옐로우, 화이트, 그린, 블루, 오렌지, 레드 (옵션)
